Goat Panels

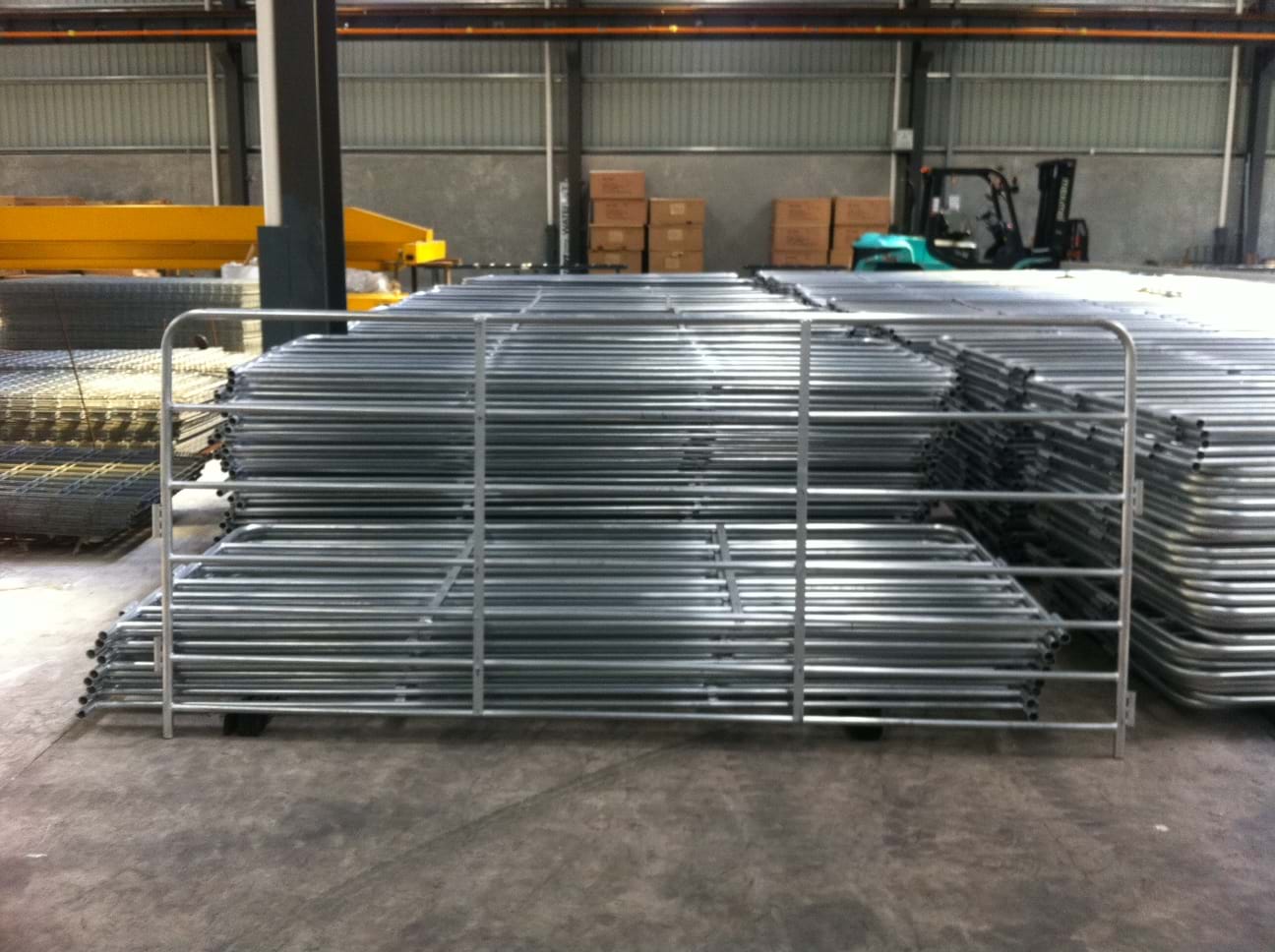

Galvanised Portable Goat Panel - Stewart Trading

Our Portable Goat Yard Panels are versatile and durable, weighing 31 kg per panel,  are 2.9 metres long and 1.28 metres high and feature a 7 rail configuration, with the bottom rail well clear of the ground.

Each panel comes with 2 lock pins.


Material Used

  • Frame: 32 OD x 1.8 wall Galvanised Tube
  • Horizontal Rail: 25 OD x 1.8 wall Galvanised Tube
  • Flat Bar: 5mm x 30mm Galvanised Vertical Brace
  • Hinge: 25 OD x 3 wall Galvanised Tube
  • Lock Pin 16 mm solid cold zinc coated

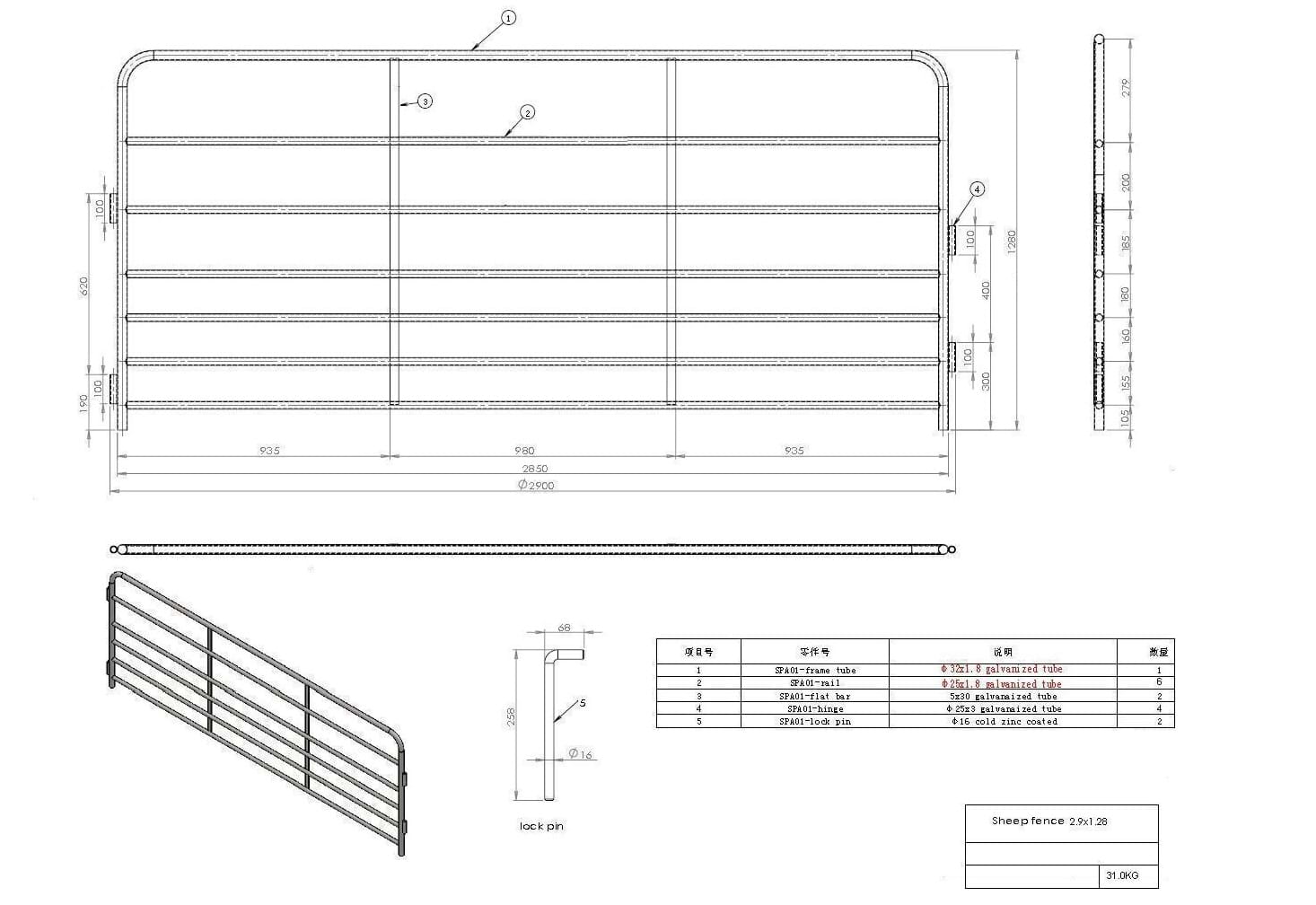

Goat Panel Drawing
