Cattle Panels

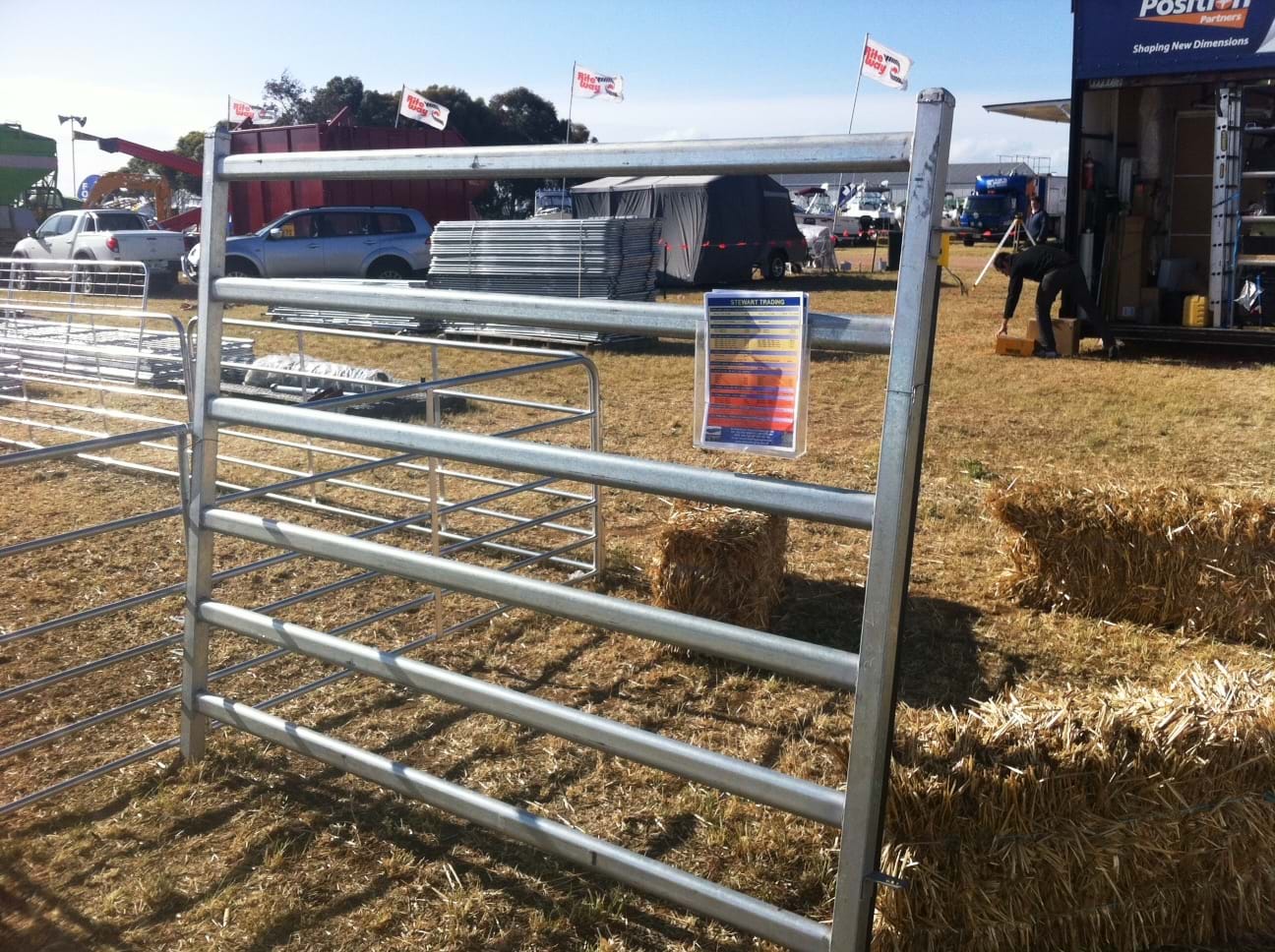

Portable Cattle Panel - Galvanised - Stewart Trading

Our Portable Cattle Yard Panels are manufactured to the highest quality, strong and durable are 2.1 metres long and 1.8 metres high and feature a 6 oval rail configuration.

Available in either a light duty or heavy duty.

Each panel comes with 2 lock pins.



Specification Light Duty  Heavy Duty
Weight: 29kg 38kg
Dimensions: 2.1m x 1.8m 2.1m x 1.8m
Vertical Frame Posts: 40 x 40 x 1.4mm Galvanised RHS 50 x 50 x 1.6mm Galvanised RHS
Horizontal Rails: 60 x 30 x 1.4mm Galvanised Oval Rail 80 x 40 x 1.4mm Galvanised Oval Rail
Caps:  40 x 40mm Metal Cap 50 x 50mm Metal Cap
Feet:  50 x 95 x 3mm Flat Bar 50 x 95 x 3mm Flat Bar
Lock Pins:     2 x Solid cold zinc coated 2 x Solid cold zinc coated

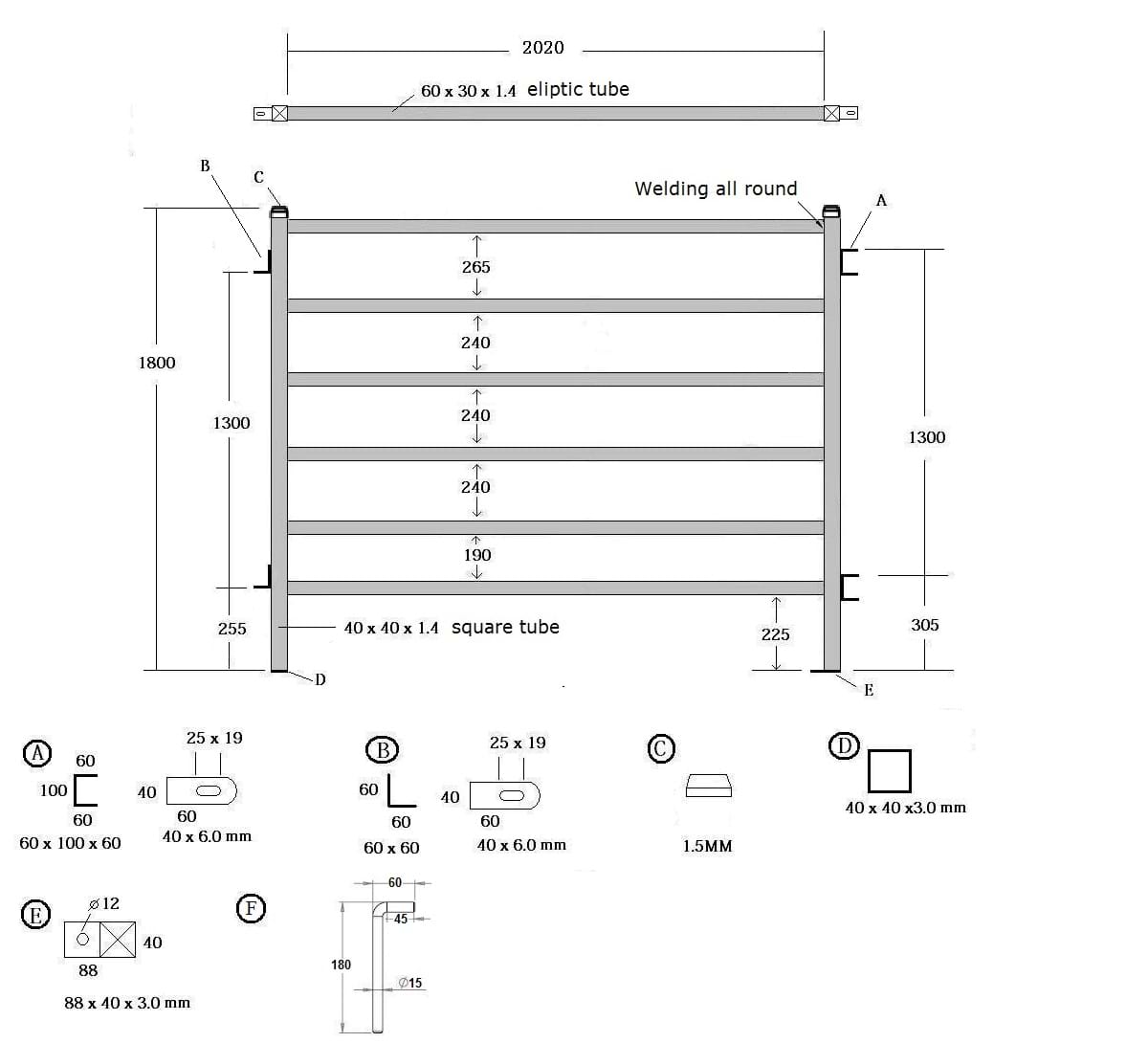

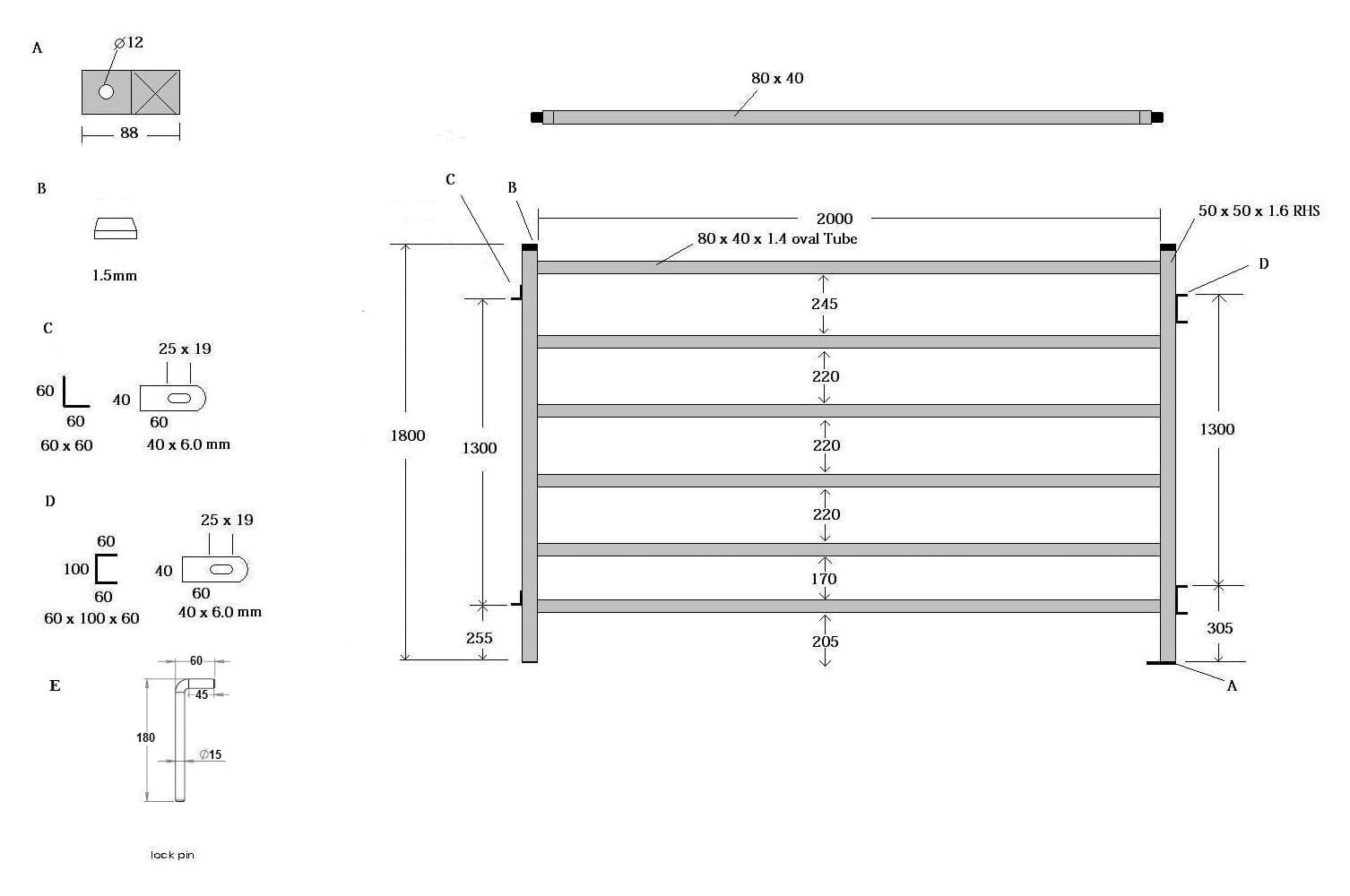

Light Cattle Panel Drawing    Heavy Cattle Panel Drawing
